Intro To PyTorch: Evening With Python Coding Meetup Demo
JM
Joshua Mitchell / August 28, 2018
8 min read
Some Cool Jupyter Notebooks Features#
# Install a conda package in the current Jupyter kernel
# import sys
# !conda install --yes --prefix {sys.prefix} <package name>
from IPython.core.interactiveshell import InteractiveShell
InteractiveShell.ast_node_interactivity = "all" # makes jupyter's auto-print functionality work for everything in cell
%load_ext autoreload
%autoreload 2
# e.g. :
# from foo import some_function
# In [1]: some_function()
# Out[1]: 42
# In [2]: # open foo.py in an editor and change some_function to return 43
# In [3]: some_function()
# Out[3]: 43
# make any plots you create with matplotlib be displayed here in your jupyter notebook
%matplotlib inline
%autosave 30
Autosaving every 30 seconds
# Command palette (for those who think clicking is cumbersome, like me):
# CMD + Shift + P (might be CTRL + Shift + P or something on Windows)
Some Keyboard Shortcuts I Found Useful:#
Esc - command mode (navigation)
Enter - edit mode (typing)
D + D (press twice) to delete current cell
Shift + Tab - brings up the docstring for the object to the left of your cursor
Esc + O - toggle cell output
J, K - move up and down with vim commands
l (in command mode) - show line numbers
Anyhow, Back to Pytorch...#
# Let's make some random data
import matplotlib.pyplot as plt
import numpy as np
NUM_DATA_POINTS = 100
x = np.arange(NUM_DATA_POINTS) # create a an array: [0, 1, 2... NUM_DATA_POINTS]
noise = np.random.uniform(-5,5, size=(NUM_DATA_POINTS,)) # create some noise to add to a truly straight line
y = -0.5 * x + 2 + noise # create a straight line plus some noise
axes = plt.gca()
line, = axes.plot(list(x), list(y), 'bs')

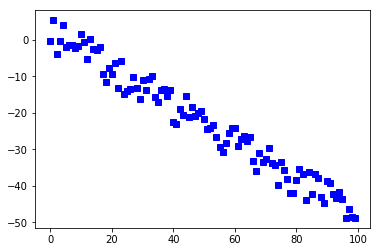

Awesome, We Have Some Data. Looks like Fair Game for a Linear Regression Model.#
# Data setup:
test_data_amount = int(0.2 * NUM_DATA_POINTS)
training_data_amount = NUM_DATA_POINTS - test_data_amount
all_data_indices = [i for i in range(NUM_DATA_POINTS)]
x_test = np.random.choice(all_data_indices, test_data_amount, replace=False)
# get the indices of 20% of the data for testing
x_train = list(set(all_data_indices).difference(set(x_test)))
# get the indices of the rest for training
y_test = [y[i] for i in x_test]
y_train = [y[i] for i in x_train]
# Enter: PyTorch
import torch
from torch.autograd import Variable
x_train = torch.Tensor(x_train)
# an n-dimensional array : array (1d) --> matrix (2d) --> tensor (3d) --> tensor (4d) ...)
x_train_var = Variable(x_train)
# wraps the tensor in a Variable class to add extra features we'll see later
x_test = torch.Tensor(x_test)
x_test_var = Variable(x_test)
# Let's check out our variables:
x_test_var
len(x_test_var)
x_train_var
len(x_train_var)
tensor([27., 65., 79., 61., 75., 34., 3., 40., 99., 52., 56., 48., 19., 82.,
16., 60., 86., 92., 41., 30.])
20
tensor([ 0., 1., 2., 4., 5., 6., 7., 8., 9., 10., 11., 12., 13., 14.,
15., 17., 18., 20., 21., 22., 23., 24., 25., 26., 28., 29., 31., 32.,
33., 35., 36., 37., 38., 39., 42., 43., 44., 45., 46., 47., 49., 50.,
51., 53., 54., 55., 57., 58., 59., 62., 63., 64., 66., 67., 68., 69.,
70., 71., 72., 73., 74., 76., 77., 78., 80., 81., 83., 84., 85., 87.,
88., 89., 90., 91., 93., 94., 95., 96., 97., 98.])
80
Sweet. Now Let's Actually Make the Linear Model.#
The line we're creating is:
y = mx + b
We have the data (the x's and the y's).
We want to know what the m and b are such that the line fits the data the best.
For now, let's just make an arbitrary line with PyTorch:
import torch.nn as nn ## Neural Network package
line_model = nn.Linear(1, 1) # create a line with 1 slope (i.e. weight) and one intercept (i.e. bias)
# Done! We made a line. What's it look like?
line_model
Linear(in_features=1, out_features=1, bias=True)
Notice: we're barely using any of the features here.
We can actually make it with as many weights and as many outputs as we want. We'll do that later.
Speaking of weights, how do we find out what the m and b actually are?
list(line_model.parameters())
[Parameter containing:
tensor([[-0.5528]], requires_grad=True), Parameter containing:
tensor([0.2260], requires_grad=True)]
Note: These are randomly generated.
How do we make the line fit the data?
test_input = Variable(torch.Tensor(x_test_var))
line_model(test_input)
---------------------------------------------------------------------------
RuntimeError Traceback (most recent call last)
<ipython-input-11-629c18b1ff76> in <module>()
1 test_input = Variable(torch.Tensor(x_test_var))
----> 2 line_model(test_input)
~/anaconda3/envs/eopc/lib/python3.6/site-packages/torch/nn/modules/module.py in __call__(self, *input, **kwargs)
475 result = self._slow_forward(*input, **kwargs)
476 else:
--> 477 result = self.forward(*input, **kwargs)
478 for hook in self._forward_hooks.values():
479 hook_result = hook(self, input, result)
~/anaconda3/envs/eopc/lib/python3.6/site-packages/torch/nn/modules/linear.py in forward(self, input)
53
54 def forward(self, input):
---> 55 return F.linear(input, self.weight, self.bias)
56
57 def extra_repr(self):
~/anaconda3/envs/eopc/lib/python3.6/site-packages/torch/nn/functional.py in linear(input, weight, bias)
1024 return torch.addmm(bias, input, weight.t())
1025
-> 1026 output = input.matmul(weight.t())
1027 if bias is not None:
1028 output += bias
RuntimeError: size mismatch, m1: [1 x 20], m2: [1 x 1] at /Users/soumith/miniconda2/conda-bld/pytorch_1532623076075/work/aten/src/TH/generic/THTensorMath.cpp:2070
Tensors Are Tricky. What's Going on Here?#
What We Wanted to Do:#
- Take the x values of our test data (which was literally the indices)
- Run all those values through our line, one at a time (i.e. put an x in, get a y)
- See the results
What Pytorch Thinks We Want to Do:#
- Take all the x values of our test data
- Fit all the x's into the line at once, as though our line had 20 inputs
Our line only has one input. So what's the solution?
Answer:#
Reshape our tensor.
test_input = Variable(torch.Tensor(x_test_var))
"BEFORE"
test_input
"AFTER"
test_input.view(-1, 1)
'BEFORE'
tensor([27., 65., 79., 61., 75., 34., 3., 40., 99., 52., 56., 48., 19., 82.,
16., 60., 86., 92., 41., 30.])
'AFTER'
tensor([[27.],
[65.],
[79.],
[61.],
[75.],
[34.],
[ 3.],
[40.],
[99.],
[52.],
[56.],
[48.],
[19.],
[82.],
[16.],
[60.],
[86.],
[92.],
[41.],
[30.]])
line_model(test_input.view(-1, 1))
tensor([[-14.6997],
[-35.7063],
[-43.4456],
[-33.4951],
[-41.2344],
[-18.5694],
[ -1.4324],
[-21.8862],
[-54.5017],
[-28.5199],
[-30.7311],
[-26.3087],
[-10.2773],
[-45.1040],
[ -8.6189],
[-32.9423],
[-47.3153],
[-50.6321],
[-22.4390],
[-16.3582]], grad_fn=<ThAddmmBackward>)
It works!
Ugh, Making Lines Is Hard.#
What are we doing again?
axes = plt.gca()
line, = axes.plot(list(x_train), [-0.5 * x + 2 for x in list(x_train)], 'r-')
plt.show()

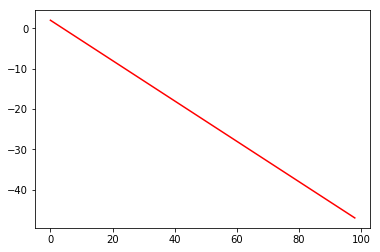

Above: The Line We're Trying to Recreate.#

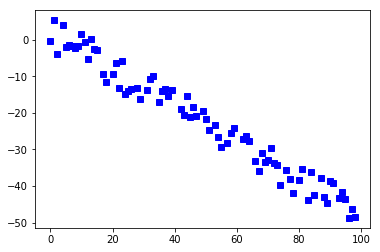

Below: The Data We're Using to Recreate the Line above.#
axes = plt.gca()
line, = axes.plot(list(x_train), list(y_train), 'bs')
plt.show()

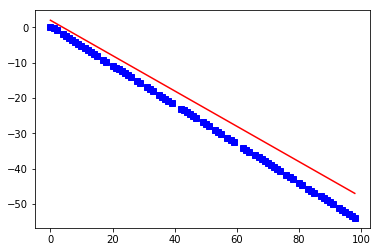

Our Line Currently:#
axes = plt.gca()
line, = axes.plot(list(x_train), [-0.5 * x + 2 for x in list(x_train)], 'r-')
line, = axes.plot(list(x_train), list(line_model(x_train.view(-1, 1))), 'bs')
plt.show()
Okay, so We're a Little off. How Do We Fix It?#
Answer: Some Kind of Optimization on a Loss Function.#
# Now, let's bring in all the big guns from PyTorch.
# Fair warning, there's a lot of machine learning / deep learning vocabulary here. Can get kitchen sink-ey.
import torch.optim as optim # Optimization package
NUMBER_OF_EPOCHS = 30000 # Number of times to adjust our model
LEARNING_RATE = 1e-2 # How quickly our model "learns"
loss_function = nn.MSELoss() # The loss function we use. In this case, Mean Squared Error (since it's Linear Regression)
optimizer = optim.Adagrad(line_model.parameters(), lr=LEARNING_RATE) # The optimizer: Stochastic Gradient Descent
y_train_var = Variable(torch.Tensor(y_train)).view(-1, 1) # making our labels into a form usable by PyTorch
for epoch in range(NUMBER_OF_EPOCHS):
line_model.zero_grad()
output = line_model(x_train_var.view(-1, 1)) # get our output from the model
loss = loss_function(output, y_train_var) # calculate the loss
loss.backward() # calculate all the partial derivatives wrt to the loss function
optimizer.step() # add or subtract a portion of the derivatives from each weight / bias

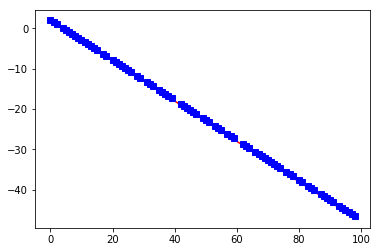

list(line_model.parameters()) # should be -0.5 and 2 (ish)
[Parameter containing:
tensor([[-0.4958]], requires_grad=True), Parameter containing:
tensor([2.0268], requires_grad=True)]
axes = plt.gca()
line, = axes.plot(list(x_train), [-0.5 * x + 2 for x in list(x_train)], 'r-')
line, = axes.plot(list(x_train), list(line_model(x_train.view(-1, 1))), 'bs')
plt.show()
Yeah, Yeah, Yeah, Enough with the Lines, I Came Here for the Neural Networks!#
Ok fine. Here's a demo for that:
x_train = Variable(torch.Tensor([[i] for i in range(100)]), requires_grad=False)
y_train = Variable(torch.Tensor([[i] for i in range(100)]), requires_grad=False)
class Net(nn.Module):
def __init__(self):
super(Net, self).__init__()
self.fc1 = nn.Linear(1, 2)
self.fc2 = nn.Linear(2, 1)
self.activation = nn.Sigmoid()
def forward(self, x):
x = self.fc1(x)
x = self.activation(x)
x = self.fc2(x)
return x
net = Net() # we made a blueprint above for our neural network, now we initialize one.
axes = plt.gca()
line, = axes.plot(list(x_train), list(net(x_train)), 'bs')
line, = axes.plot(list(x_train), list(x_train), 'r-')
plt.show()

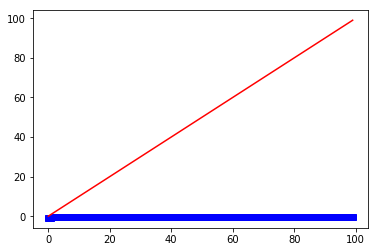

# Red: The identity function: y = x (we're trying to approximate it)
# Blue: What our neural network does now
%matplotlib inline
NUMBER_OF_EPOCHS = 10000
LEARNING_RATE = 0.1
loss_function = nn.MSELoss()
optimizer = optim.Adagrad(net.parameters(), lr=LEARNING_RATE)
import pylab as pl
from IPython import display
for epoch in range(NUMBER_OF_EPOCHS):
net.zero_grad()
output = net(x_train)
loss = loss_function(output, y_train)
loss.backward()
optimizer.step()
display.clear_output(wait=True)
axes = plt.gca()
line, = axes.plot(list(x_train), list(net(x_train)), 'bs')
line, = axes.plot(list(x_train), list(x_train), 'r-')
plt.show()

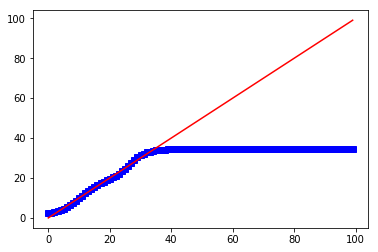

It's (kind of) learning what y = x is!
